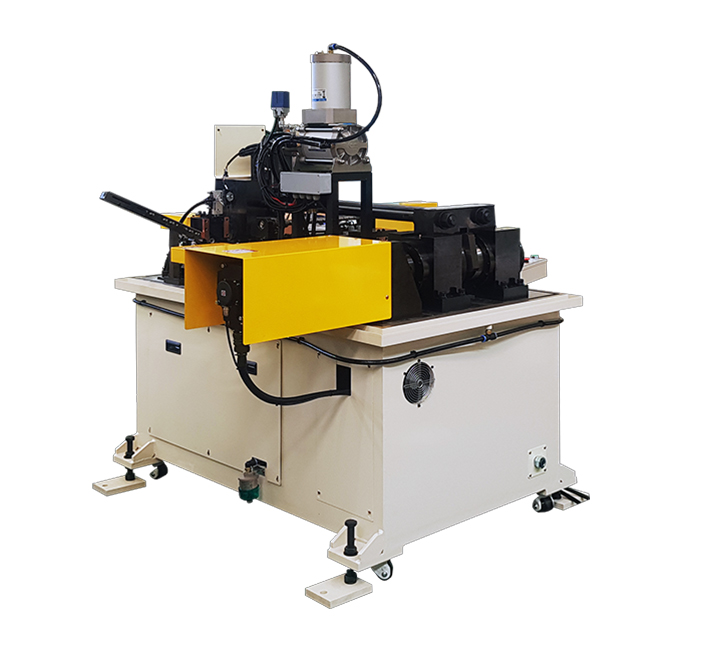

CNC Forming Machine
WSEF-6P
With the high-speed and high-precision CNC bending machine manufactured based on ECO’s many years of bending know-how, Meet high efficiency and high quality pipe bending
Feature One
Full LCD color with touch screen
Feature Two
Use a punch to cut the end of a pipe
Feature Three

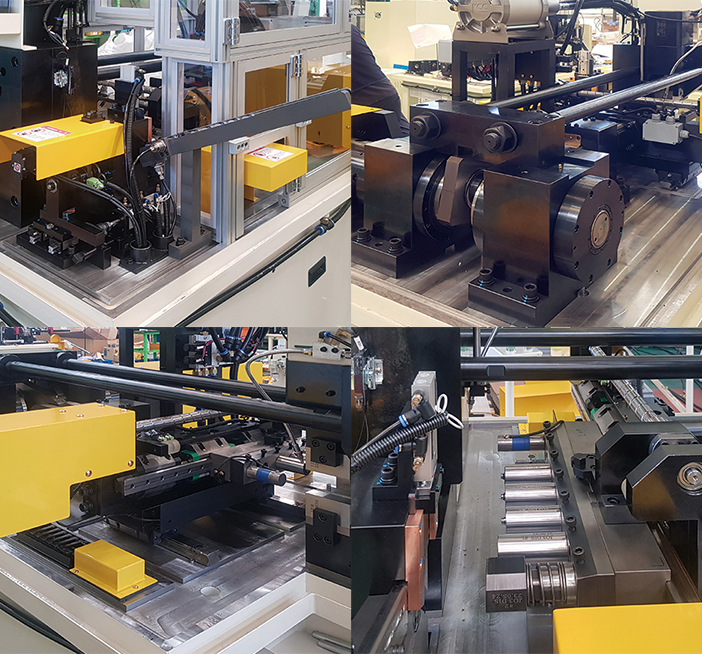

Up to 6 steps supported by horizontal punch movement (stopper 1 separate)
Feature Four
Fast and accurate data control is possible by using a servo type. (without hydraulic system)
Feature Five
Speed and position of each punch can be set
Feature Six
Electricity can be saved by using the servomotor only when punching
Feature Seven
Quiet, compact design (no hydraulics)
Feature Eight
Automatable (AUTO LODER, flange insertion, AUTO UNLODER)
Video & Specifications
| Specifications | WSEF-6P |
|---|---|
| Motor | Servo Type |
| Stroke length | 90 mm |
| Control number | 0.01 mm |
| Clamp - hydraulic booster cylinder | 10 tons |
| Air pressure - amount to use | 5-6 kgf/cm² |
| Capacitance - amount to use | 8 kw |
| hydraulic | No hydraulic pressure |
| Automatic oil injection device | Auto lubricator |
| Size W x L x H (mm) | 1,700 x 1,860 x 1,900 |
| Weight (kg) | 1,500 kg |
| Axis | 3 |
| Control device | Full Color Touch Screen |
