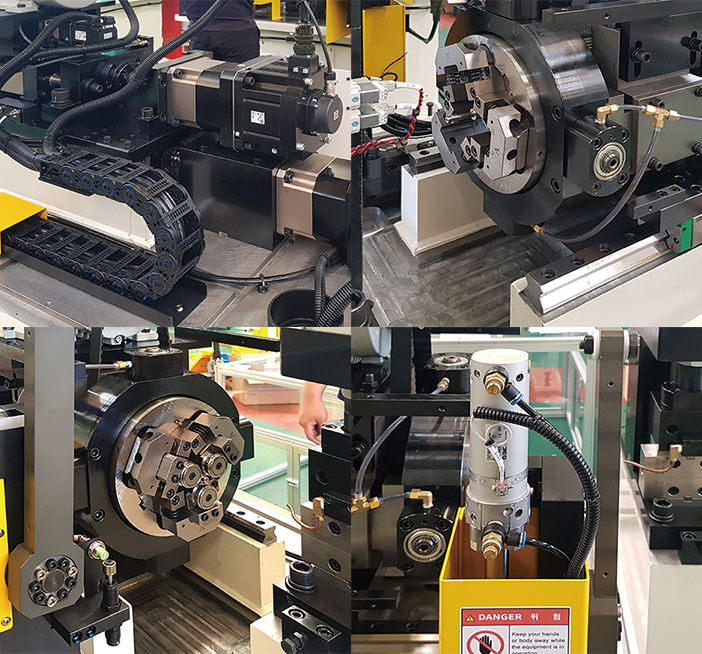

CNC Grooving Machine
WGM-3R
With the high-speed and high-precision CNC bending machine manufactured based on ECO’s many years of bending know-how, Meet high efficiency and high quality pipe bending
Feature One
Full LCD color with touch screen
Feature Two
Processing pipe ends using rollers
Feature Three
Fast and accurate data control is possible by using a servo type. (without hydraulic system)
Feature Four
Speed and position of each axis can be set (position accuracy 0.0001)
Feature Five
Electricity can be saved by using the servo motor only when feeding the roller.
Feature Six
Quiet, compact design (no hydraulics)
Feature Seven
Automatable (AUTO LODER, flange insertion, AUTO UNLODER)
Video & Specifications
| Specifications | WGM-3R |
|---|---|
| Rolling rotation | Electric motor |
| Stroke feed | Servo type |
| Roller | Servo type |
| Mandrel | Servo type |
| Stopper | Servo type |
| Clamp | Pneumatic |
| Capacitance | 11.2 kw |
| Axis | 4 Axis |
| Size W x L x H (mm) | 1,365 x 1,890 x 1,640 |
| Weight (kg) | 1,400 kg |
| Control device | Full Color Touch Screen window system |
