ECO CNC offers total solutions for automated lines involving pipes

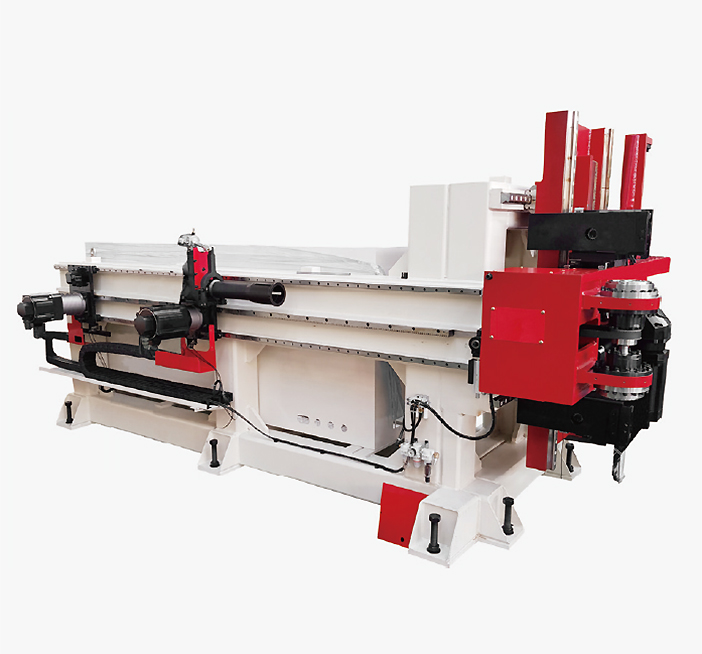

CNC Bending Machine

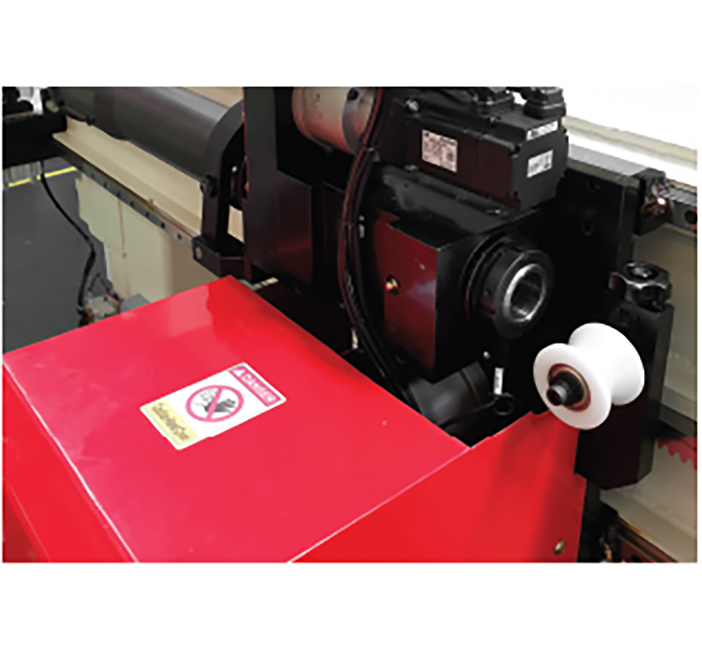

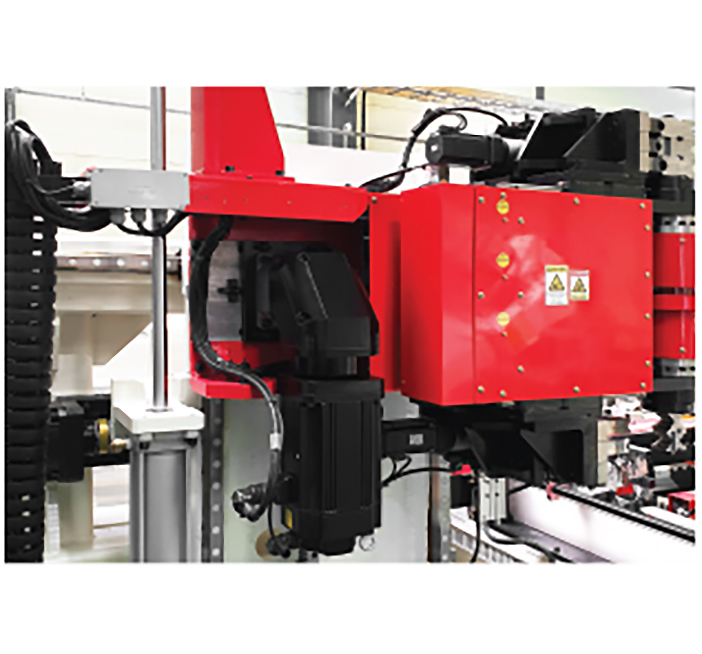

EB-SW3006R
With the high-speed and high-precision CNC bending machine manufactured based on ECO’s many years of bending know-how, Meet high efficiency and high quality pipe bending
Feature One
10 Electric Servo Axis control
Feature Two
The program is based on window 10’s stability and compatibility for operating production system
Feature Three
Install the optimized program for best bending and user’s convenience.
Feature Four
Easy to move the date and retention on by USB Port
Feature Five
Easy to exchange the tooling for bending
Video & Specifications
| Specifications | EB-SW3006R | |
|---|---|---|
| Bending capacity (mm) | Standard steel pipe | Ø 32.16 x 1.6 T |
| Copper / Alumium pipe | Ø 35 x 1.2 T | |
| Max. bending radius | 120 mm | |
| Max. bending stacks | 6 Stacks | |
| Pipe effective length | 2,500 mm | |
| Program storage capacity | More than 1,000,000 (80G HDD) | |
| Operating speed | Bending ('/sec) | 200°/sec |
| Feeding (mm/sec) | 1,000 mm/sec | |
| Plane('/sec) | 270°/sec | |
| Electricity | Capacity(Kw) | 19.9 kw |
| Dimension | 4,000x 2,100 x 1,800 | |
| Axis | 10 Axis | |
| Total weight | 4,000 kg | |
