ECO CNC offers total solutions for automated lines involving pipes

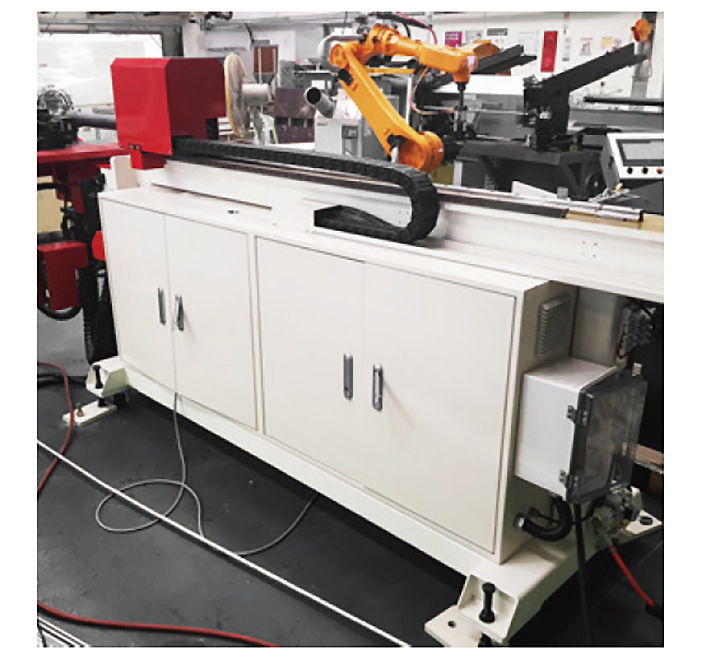

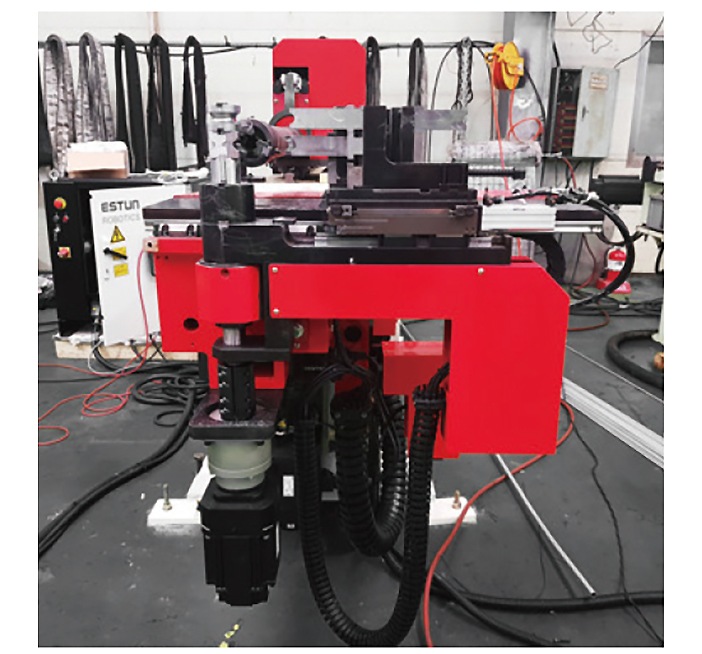

CNC Bending Machine
EB-HSW1503R
With the high-speed and high-precision CNC bending machine manufactured based on ECO’s many years of bending know-how, Meet high efficiency and high quality pipe bending
Feature One
10 Electric Servo Axis control
Feature Two
The program is based on window 10’s stability and compatibility for operating production system
Feature Three
Install the optimized program for best bending and user’s convenience.
Feature Four
Easy to move the date and retention on by USB Port
Feature Five
Easy to exchange the tooling for bending
Video & Specifications
| Specifications | EB-HSW1503R | EB-HSW2503R | EB-HSW3003R | |
|---|---|---|---|---|
| Bending capacity (mm) | Standard steel pipe | Ø 15.88 x 1.2 T | Ø 25.4 x 1.4 T | Ø 31.8 x 2.0 T |
| Copper / Alumium pipe | Ø 19.05 x 1.2 T | Ø 30.1 x 1.2 T | Ø 35 x 2.0 T | |
| Max. bending radius | 60 mm | 100 mm | 120 mm | |
| Max. bending stacks | 3 Stacks | 3 Stacks | 3 Stacks | |
| Pipe effective length | 1,700 mm | 1,800 mm | 2,000 mm | |
| Program storage capacity | More than 1,000,000 (10 Channels) | |||
| Operating speed | Bending ('/sec) | 480°/sec | 315°/sec | 315°/sec |
| Feeding (mm/sec) | 1,300 mm/sec | 900 mm/sec | 900 mm/sec | |
| Plane('/sec) | 450°/sec | 300°/sec | 300°/sec | |
| Electricity | Capacity(Kw) | 13 kw | 14.6 kw | 18 kw |
| Dimension | 3,420 x 1,100 x 1,460 | 3,800 x 1,380 x 1,550 | 4,000 x 1,380 x 1,550 | |
| Axis | 8 Axis | 8 Axis | 8 Axis | |
| Total weight | 1,300 kg | 2,000 kg | 2,300 kg | |
