CNC Pipe Bending Machine

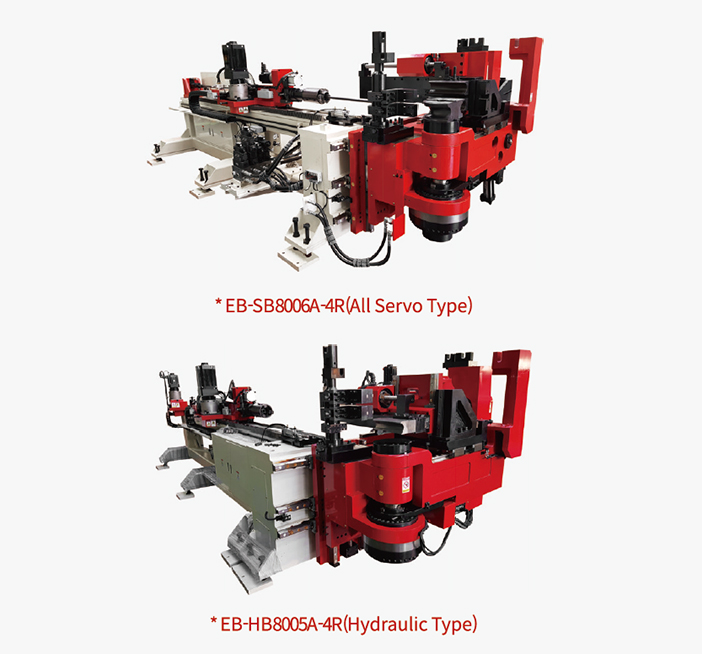

EB-HB8005A-4R / EB-SB8006A-4R
With the high-speed and high-precision CNC bending machine manufactured based on ECO’s many years of bending know-how, Meet high efficiency and high quality pipe bending
Feature One
9 Electric Servo Axis control
Feature Two
The program is based on window 10’s stability and compatibility for operating production system
Feature Three
Install the optimized program for best bending and user’s convenience.
Feature Four
Easy to move the date and retention on by USB Port
Feature Five
Easy to exchange the tooling for bending
Video & Specifications
| Specifications | EB-HB8005A-4R (Hydraulic Type) | EB-SB8006A-4R (All Servo Type) |
|
|---|---|---|---|
| Bending capacity (mm) | Standard steel pipe | Ø 76.2 x 1.6 T x 1.0 D | Ø 76.2 x 1.6 T x 1.0 D |
| Copper / Alumium pipe | Ø 76.2 x 1.2 T x 1.0 D | Ø 76.2 x 1.2 T x 1.0 D | |
| Max. bending radius | 180 mm | 180 mm | |
| Max. bending stacks | 4 Stacks | 4 Stacks | |
| Pipe effective length | 2,500 mm | 3,000 mm | |
| Program storage capacity | More than 1,000,000 (80G HDD) | ||
| Operating speed | Bending ('/sec) | 112.5°/sec | 112.5°/sec |
| Feeding (mm/sec) | 667 mm/sec | 667 mm/sec | |
| Plane('/sec) | 240°/sec | 240°/sec | |
| Electricity | Capacity(Kw) | 40.7 kw + hydraulics 16kw | 70.5 kw |
| Dimension | 2,700x 5,550 x 1,830 | 1,900x 6,330 x 1,830 | |
| Axis | 5 Axis | 9 Axis | |
| Total weight | 10,000 kg | 9,500 kg | |
