ECO CNC offers total solutions for automated lines involving pipes

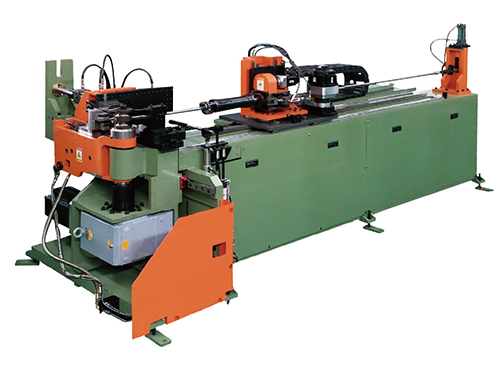

CNC Bending Machine
EB-4002R
With the high-speed and high-precision CNC bending machine manufactured based on ECO’s many years of bending know-how, Meet high efficiency and high quality pipe bending
Feature One
Equipped with a basic 4-axis electric servo control system.
Feature Two
Provides stability and compatibility of programs based on window 7.
Feature Three

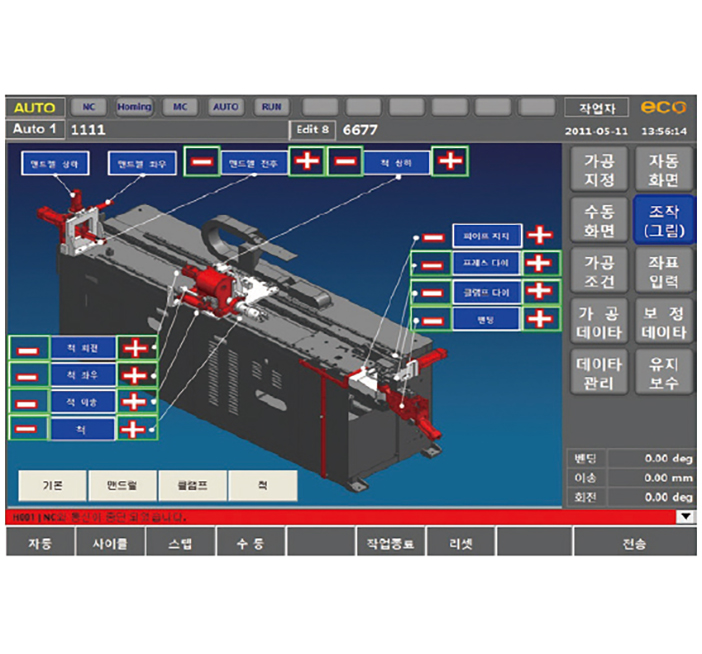

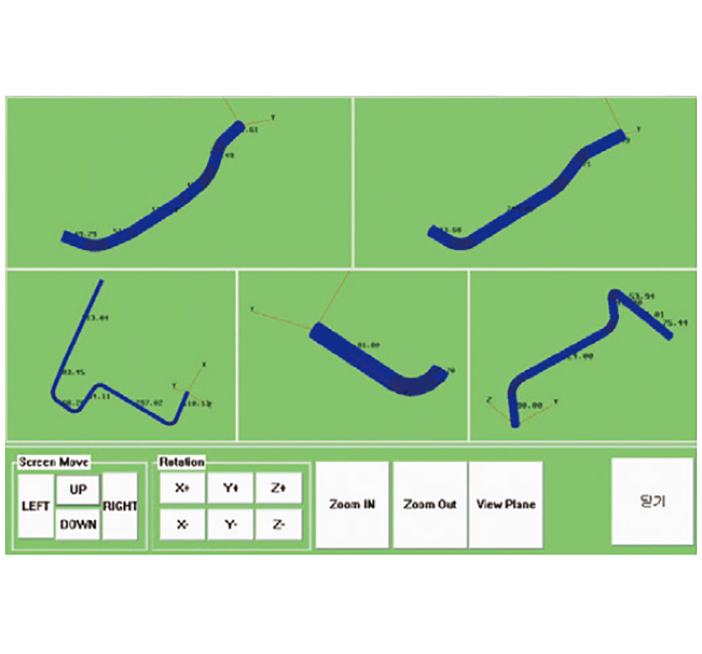

Equipped with its own program that optimally considers user convenience and bending efficiency improvement.
Feature Four
It’s easy to store data with a USB port.
Feature Five
Simple exchange and mounting of bending molds are possible.
Feature Six
Efficient hydraulic pump system with built-in air-cooled cooler
Video & Specifications
| Specifications | EB-4002R | |
|---|---|---|
| Bending capacity (mm) | Standard steel pipe | Ø 42.7 x 3.5 T |
| Copper / Alumium pipe | Ø 19,05 x 1.2 T | |
| Max. bending radius | 200 mm | |
| Max. bending stacks | 2 Stacks | |
| Pipe effective length | 3,000 mm | |
| Program storage capacity | More than 1,000,000, 80G HDD | |
| Operating speed | Bending ('/sec) | 200°/sec |
| Feeding (mm/sec) | 1,200 mm/sec | |
| Plane('/sec) | 250°/sec | |
| Electricity | Hydraulic motor | 5.5 kw |
| Capacity(Kw) | 20.47 kw | |
| Dimension | 4,350 x 1,650 x 1,650 | |
| Total weight | 6,750 kg | |
