CNC Bending Machine

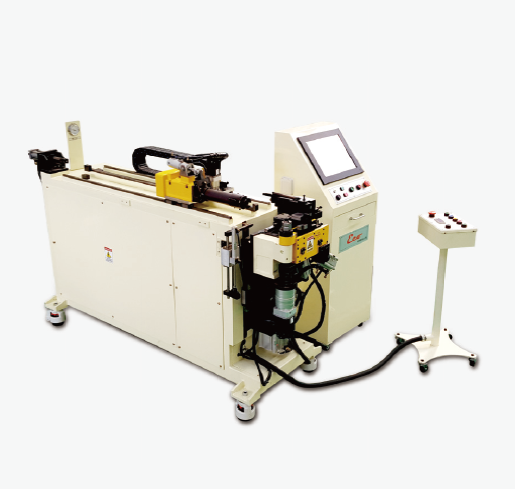

EB-1002R
With the high-speed and high-precision CNC bending machine manufactured based on ECO’s many years of bending know-how, Meet high efficiency and high quality pipe bending
Feature One
Equipped with a basic three-axis electrical servo control system.
Feature Two
Provides stability and compatibility of programs based on window 10.
Feature Three
Equipped with its own program that optimally considers user convenience and bending efficiency improvement.
Feature Four
It’s easy to store data with a USB port.
Feature Five
Simple exchange and mounting of bending molds are possible.
Feature Six
Efficient hydraulic pump system with built-in air-cooled cooler
Video & Specifications
| Specifications | EB-1002R CNC Bending Machine | EB-2002R CNC Bending Machine |
|
|---|---|---|---|
| Bending capacity (mm) | Standard steel pipe | Ø 12.00 x 1.6 T | Ø 12.00 x 1.6 T |
| Copper / Alumium pipe | Ø 16.00 x 1.2 T | Ø 19.00 x 1.2 T | |
| Max. bending radius | 50 mm | 60 mm | |
| Max. bending stacks | 2 Stacks | 2 Stacks | |
| Pipe effective length | 1,000 mm | 1,500 mm | |
| Program storage capacity | More than 1,000,000 (10 Channels) | More than 1,000,000 (10 Channels) | |
| Operating speed | Bending ('/sec) | 250°/sec | 200°/sec |
| Feeding (mm/sec) | 1,000 mm/sec | 1,000 mm/sec | |
| Plane('/sec) | 360°/sec | 360°/sec | |
| Pneumatic | Capacity | 5 kgf/cm² | 5 kgf/cm² |
| Electricity | Capacity(Kw) | 4 kw | 10 kw |
| Hydraulic | Non-Use Hydraulic Type | ||
| Dimension | 2010 x 640 x 1220 | 2600 x 640 x 1220 | |
| Total weight | 850 kg | 1200 kg | |
