CNC Bending Machine

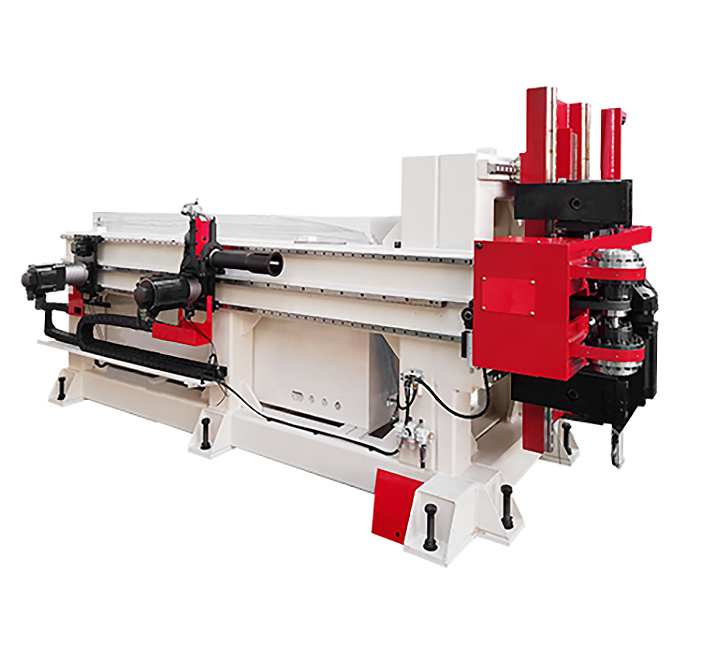

30 Switch Bending MC (Table up/down)
LEFT-RIGHT SWITCABLE, TABLE UP/DOWN, 10 AXIS SERVO EB-VSW3006R
Video & Specifications
| Specifications | 30 Switch Bending MC | |
|---|---|---|
| Bending capacity (mm) | Standard steel pipe | Ø 31.8 x 1.6 T |
| Copper / Alumium pipe | Ø 35 x 1.2 T | |
| Max. bending radius | 120 mm | |
| Max. bending stacks | 6 Stacks | |
| Pipe effective length | 2,500 mm | |
| Operating speed | Bending ('/sec) | 300°/sec |
| Feeding (mm/sec) | 900 mm/sec | |
| Rotation ('/sec) | 300°/sec | |
| Pneumatic | Pressure | 5 kgf / cm2 |
| Electricity | Hudraulic Motor | N/A |
| Capacity(Kw) | 32 kw | |
| Dimension | 4,000x 2,000 x 2,000 | |
| Total weight | 4,000 kg | |
| Servo Motor Axis | Bending | O |
| Feeding | O | |
| Rotation | O | |
| Mandrel | O | |
| Mandrel Up/Down | X | |
| Mandrel In/Out | X | |
| Table Up/Down | O | |
| Table In/Out | O | |
| Table Rotate | X | |
| Clamp | O | |
| Pressure | O | |
| Pressure Booster 1 | O | |
| Pressure Booster 2 | O | |
| Operation System | PC Window based UI | |
| Program storage capacity | More than 1,000,000 (10 Channels) |
|
